In Proceedings of International Journal of Computer Assisted Radiology and Surgery

Manual Registration in AR-Assisted Surgical Navigation: A Comparative Evaluation

Jiaqi Tang, Abdullah Thabit, Theo van Walsum, Ricardo Marroquim, and Mohamed Benmahdjoub

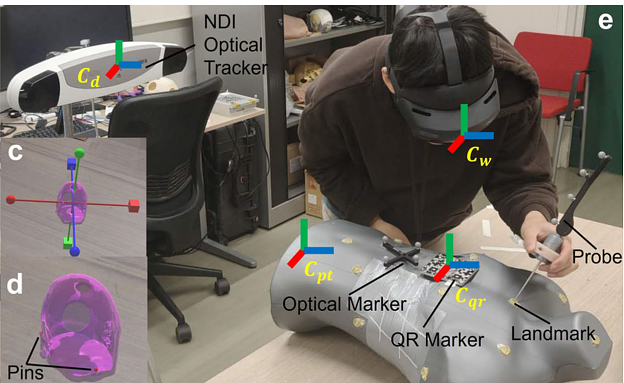

Purpose: This study evaluates two virtual auxiliary tools, degrees of freedom (DOF) Separation and PinNPivot, to address depth perception limitations and high error rates in manual registration for AR-assisted surgical navigation. Methods: DOF Separation decouples translation and rotation using six independent controls, minimizing cumulative errors. PinNPivot constrains object motion around virtual pins to stabilize rotation. Their effectiveness in AR remains underexplored. Using a hybrid evaluation system (Vuforia and NDI optical tracking), these tools were compared to unassisted manual registration on two patient-specific phantoms, assessing accuracy, task completion time, and NASA-TLX workload scores. Results: PinNPivot balanced efficiency and accuracy but was prone to initial pin placement errors. DOF Separation achieved the highest accuracy but required longer task times due to iterative adjustments. NASA-TLX results showed higher cognitive and physical workload for assisted methods. Conclusion: DOF Separation and PinNPivot improved registration accuracy and efficiency over unassisted manual registration. As software-based tools requiring no additional hardware, they hold promise for enhancing AR-assisted surgical navigation. Future work should validate their clinical applicability in diverse scenarios.


More Information

Citation

Jiaqi Tang, Abdullah Thabit, Theo van Walsum, Ricardo Marroquim, and Mohamed Benmahdjoub, Manual Registration in AR-Assisted Surgical Navigation: A Comparative Evaluation, In Proceedings of International Journal of Computer Assisted Radiology and Surgery , 2025.

BibTex

@inproceedings{bib:tang:2025,
    author       = { Tang, Jiaqi and Thabit, Abdullah and van Walsum, Theo and Marroquim, Ricardo and Benmahdjoub, Mohamed },
    title        = { Manual Registration in AR-Assisted Surgical Navigation: A Comparative Evaluation },
    booktitle    = { In Proceedings of International Journal of Computer Assisted Radiology and Surgery  },
    year         = { 2025 },
    doi          = { 10.1007/s11548-025-03410-4 },
    url          = { https://publications.graphics.tudelft.nl/papers/819 },
}
